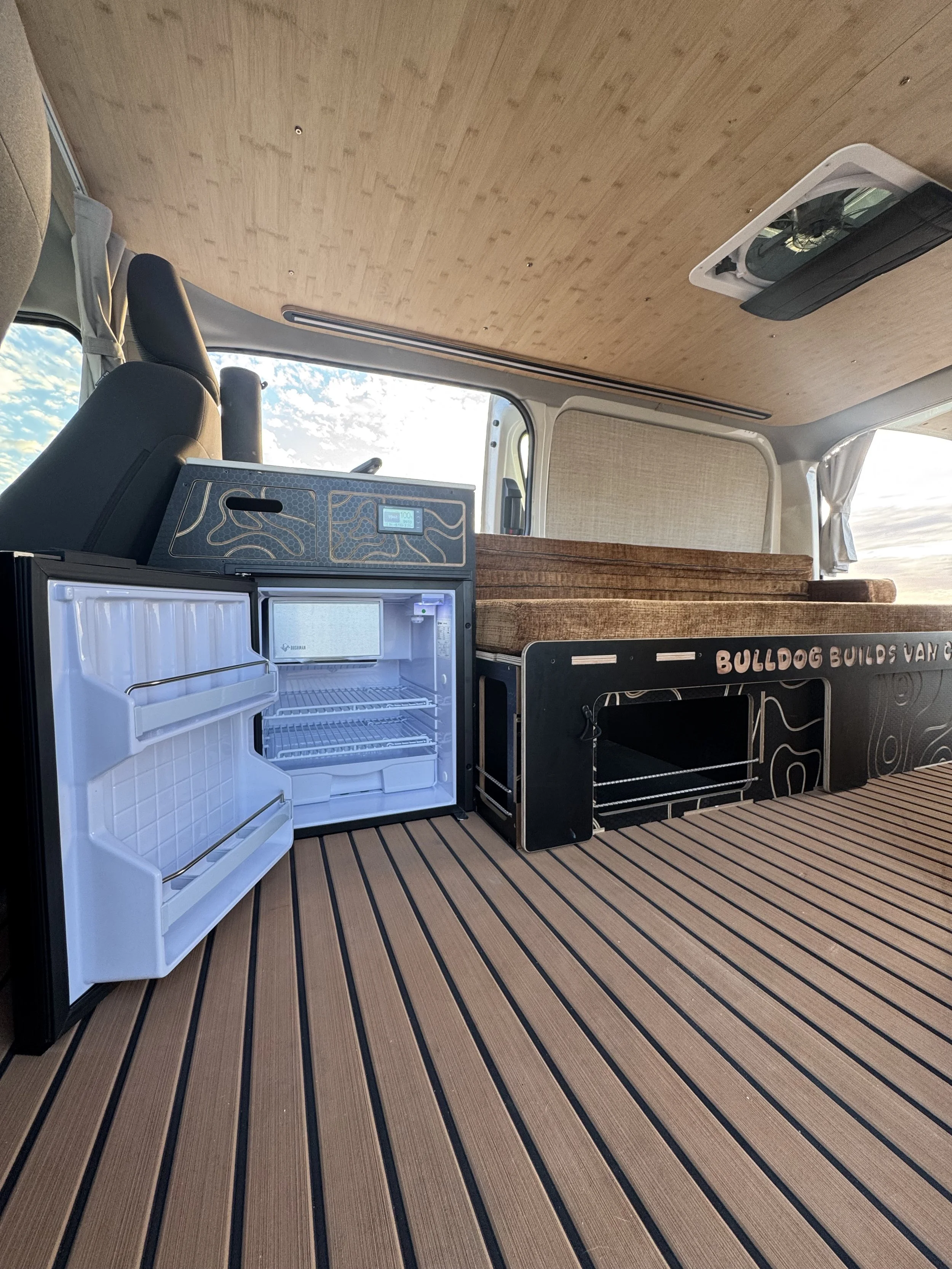

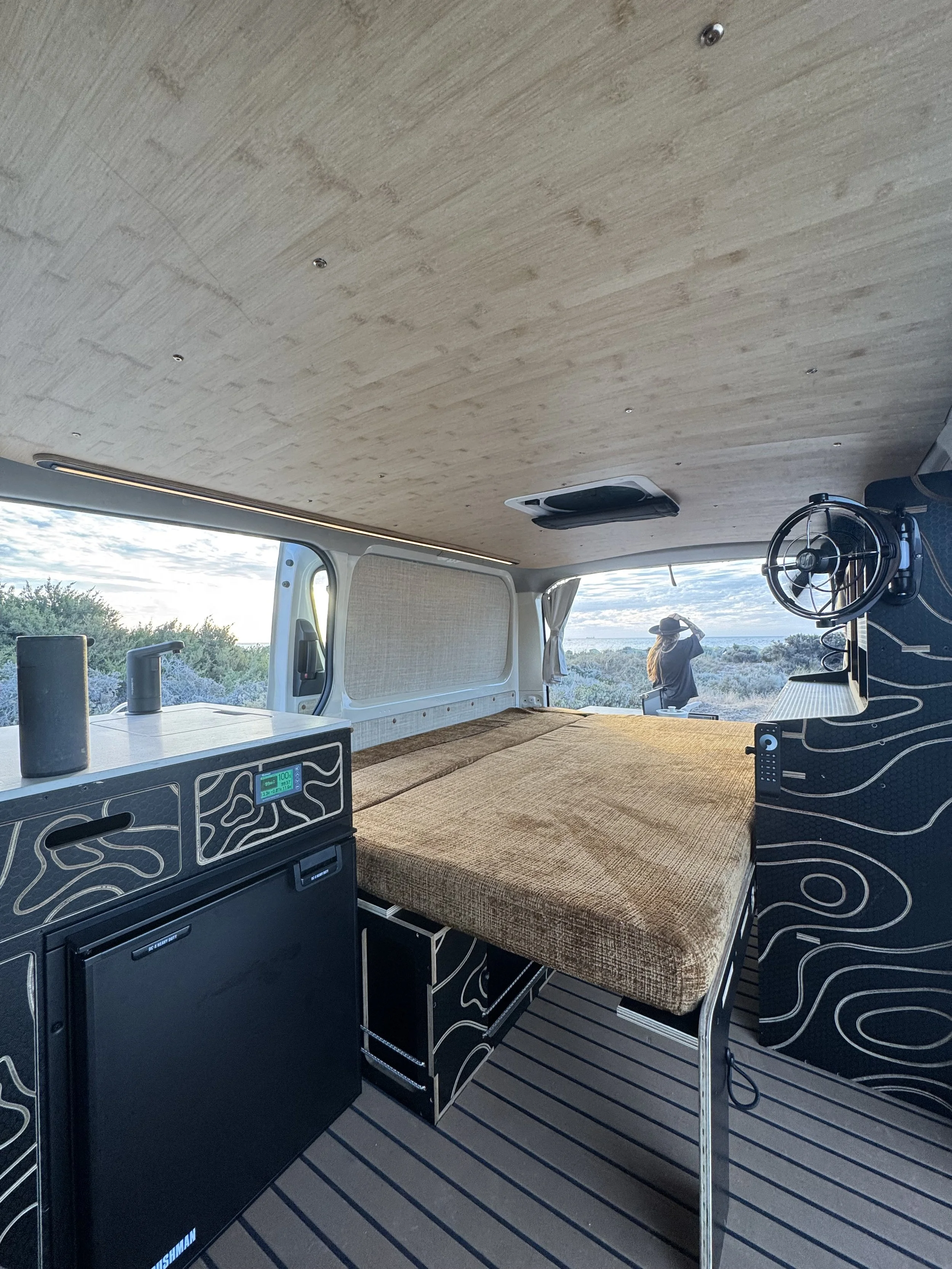

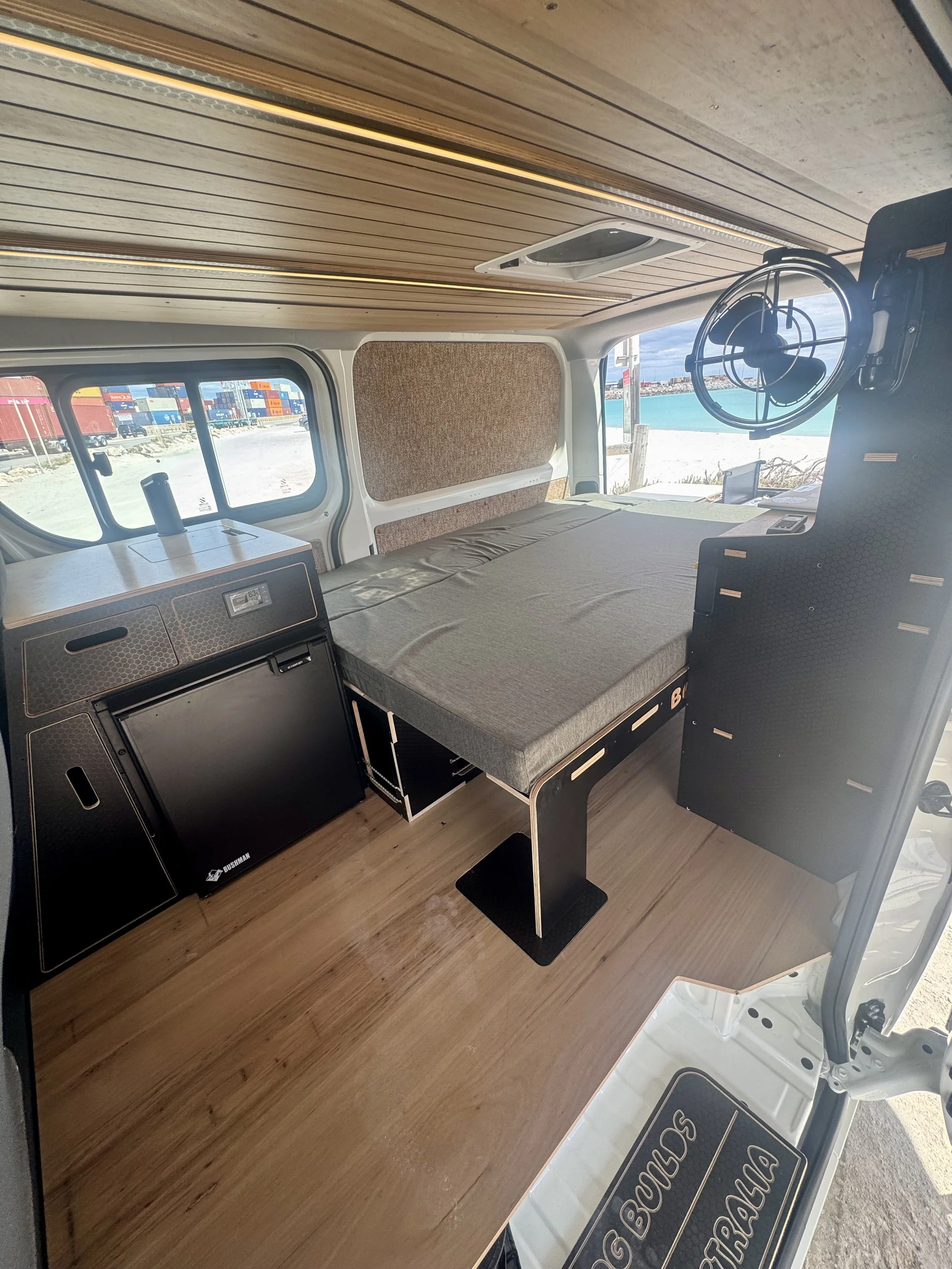

Designed to maximise the space directly behind the driver’s seat, this compact kitchen unit integrates a 65L upright fridge/freezer, sink, and practical storage into a clean and efficient layout.
Built specifically for the Toyota HiAce 300 Series LWB, the unit provides a functional cooking and storage area without compromising interior space. The layout includes a pantry-style drawer for food and supplies, along with a long narrow top-access drawer designed for quick access to everyday items such as utensils, cooking gear, or pantry essentials.

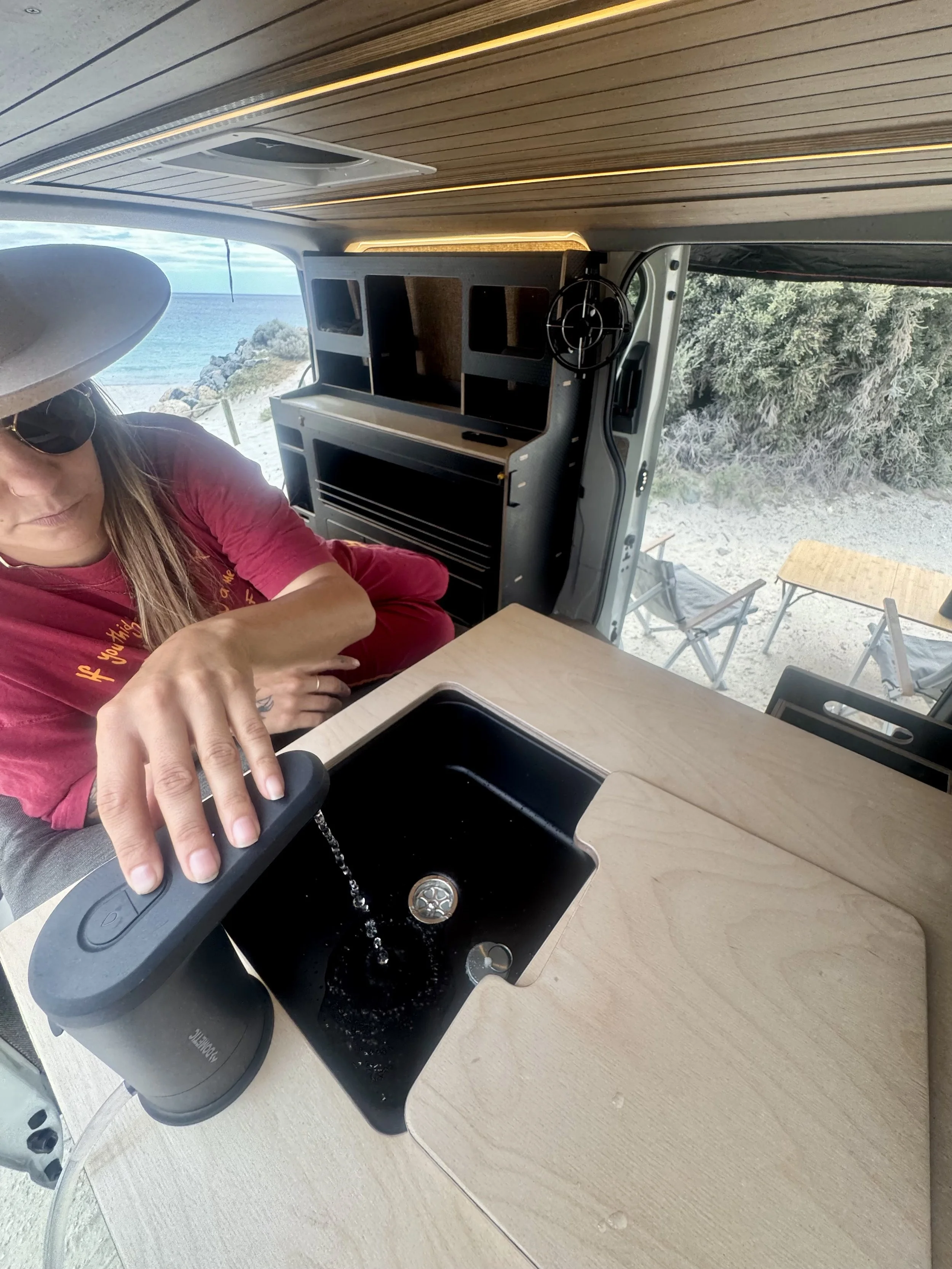

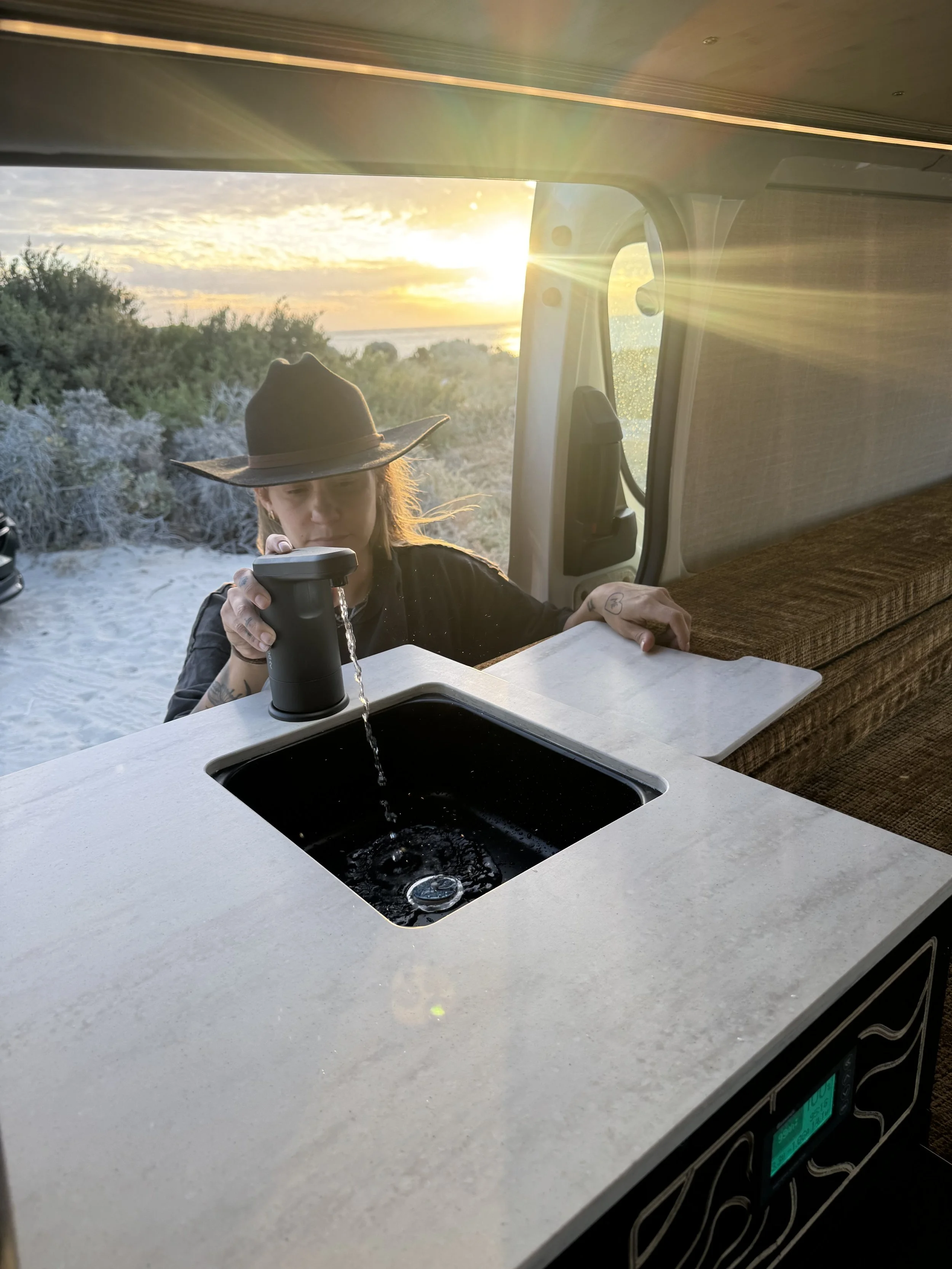

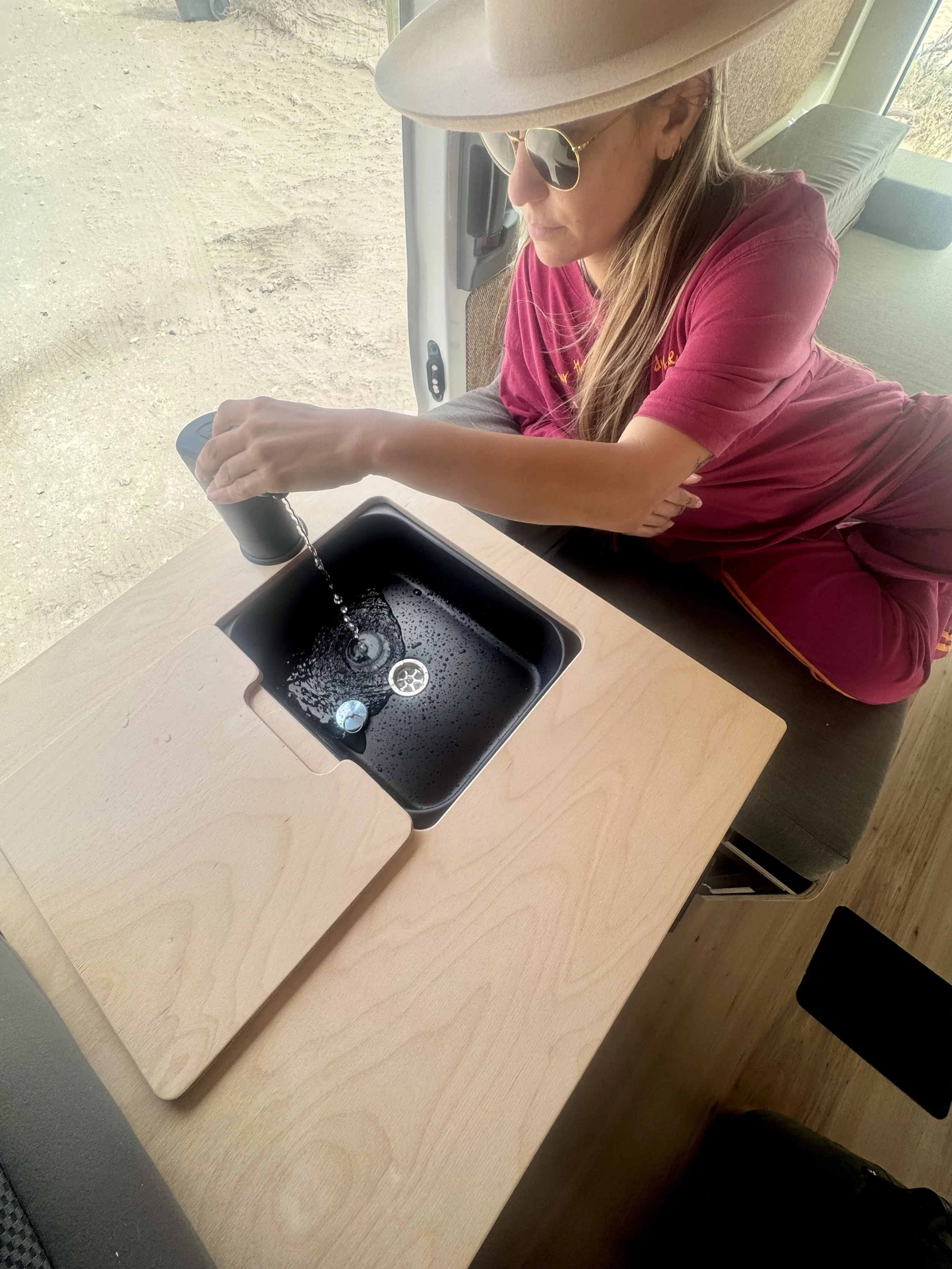

The unit supports a 200 x 300 x 150 mm sink, making it a simple and practical solution for washing dishes or preparing food while travelling. Water supply is ideally paired with the Dometic GO Hydration Faucet and jerry can system, which provides a clean and portable water solution without requiring permanent plumbing.
For drainage, the system can be configured with either a straight-through drain outlet or connected to a small under-mounted grey water tank, depending on your build requirements.
Each unit is CNC-cut in-house by Bulldog Builds to ensure a precise fit and consistent finish, creating a compact and durable kitchen solution designed specifically for the HiAce platform.
Key Features
• Designed to maximise space behind the driver’s seat
• Supports 65L upright Bushman fridge/freezer (sold separately)
• Integrated sink provision (200 x 300 x 150 mm)
• Pantry-style drawer for food and supplies
• Long narrow top-access drawer for utensils and small items
• Compatible with **Dometic GO Hydration Faucet and jerry can water systems (Sold separately)
• Drainage: straight-through drain
• Compact design that maintains an open interior layout
Electrical Integration
The unit includes dedicated cut-outs for common camper electrical components, allowing the system to integrate easily with a range of electrical setups.
Optional provisions and include:
• USB charging outlet cut out
• Victron / renogy Inverter remote cut out
• Renogy / Victron Battery Monitor Shunt cut out
• Double pole 240V outlet cut out
These features can be included, removed, or customised depending on your build requirements.
We also provide a “baseline” electrical package supply & installation dedicated for the 300 series Hiace, see additional products for more detail.
Materials
Constructed using durable, lightweight materials chosen for strength and longevity:
• 12mm Birch Hexa Ply
• Sealed raw birch bench top
• All edges sanded and sealed with polyurethane for moisture protection
Vehicle Compatibility
Currently designed to suit:
• Toyota HiAce 300 Series LWB
A Compact Kitchen Solution
This unit provides a simple and space-efficient way to integrate fridge, sink, and storage into your van build with limited space. When combined with the Bulldog Builds Simple Surfer Kit and Side Rear Unit, it forms a well-balanced camper layout that keeps everything organised while maintaining a clean and practical interior.
